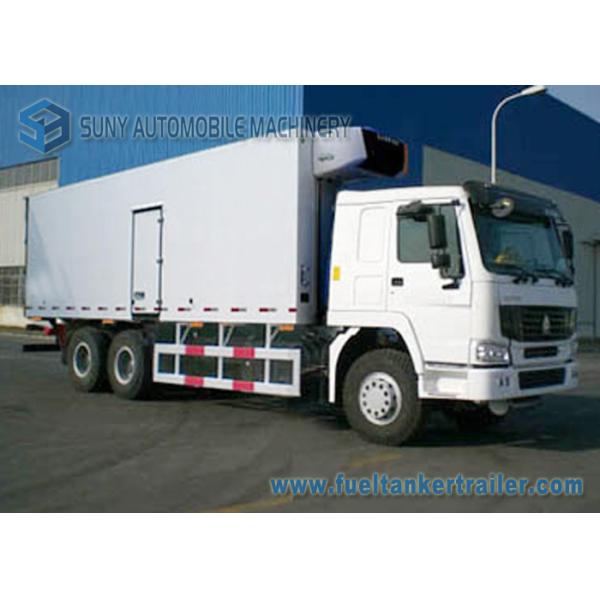

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP

Product Categories

Hubei Suny Automobile And Machinery Co., Ltd

Contact Now

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP

Name: 30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP
Brand: SUNY
Price: 35 USD

Brand Name : SUNY

Model Number : ZZ1257

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD 35,000 ~ 68,000 / Unit

Supply Ability : 500 Units / Month

Delivery Time : 15 ~ 20 working days

Packaging Details : After Waxing by Container , RO-RO , Bulk Freighter

Cargo Body Size : 6200*2420*2300 mm

Cargo Body Material : FRP inside & outside of the van, polyurethane as the insulation

Cargo body thickness : 80mm

Door : Single Rear Door , Optional Side Door

Temperature Range : -10C to 0°C

Engine : 247 kw / 336 hp

Displacement (lit) : 9.726

Number of gears : 10 forward gears & 2 reverse

Brake System : Air braking

Tire : 12.00-20 Optional Radial Tire

Cabin : HW76 With A/C

Contact Now

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP

6X4 SINOTRUK HOWO Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)

Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.

Temperature reaches from -18°C to 0°C
Total capacity: approx. 20000 KG ~ 25000 KG ~ Max .35000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Product Name		*64 Refrigerator Truck**
Brand-Series		SINOTRUK-HOWO
Chassis Model		ZZ1257
Emission Standard		Euro 2
Fuel type		Diesel
Cabin		HW76,with A/C,One sleeper
Whole vehicle main dimensions (mm)	Overall dimensions (L×W×H)	900025453980
	box dimensions	620024202300
	Wheel base	4025+1350
	Front overhang	1500
	Rear overhang	1945
	Min. ground clearance	530
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	10880
	Max payload	30000
Whole vehicle main performance	Max. speed (km/h)	98
	Max. slope of climb (%)	30
Engine	Model	WD615.95E
	Rated power (kw/rpm)	247kw / 2200
	Displacement (L)	9.726
	Number of cylinders	6
	Max torque (N.m/rpm)	1350/1600
	Intake type	Turbocharged,EGR
Transmission	model	HW15710
	Number of gears	10 forward gears & 2 reverse
Rear axle	/	HC16 Central casting wheel reduction gear + single axle drive axle
Suspension	Front	10- Leaf spring
	Rear	12-leaf spring
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Dual-circuit air brake
Electric device	Rated voltage	24V
Tyres & Quantity		12.00-20 & 10+1
Box Description
Box dimensions (mm)		620024202300
Box material		FRP inside & outside of the van, polyurethane as the insulation
Box thickness		80 mm Optional 100mm
Back Door		hinged door
Side door		Optional
Refrigeration systems		Equipped with DT-500S, NIDIAN THERMO, South korean Hanya Brand
Temperature Range		Normal temperature,refrigeration temperature reached -18°C to 0°C
Others		Stainless Steel door frame,Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body, Room lamp will be provided inside the cabin.

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP

Product Tags:

van semi trailer

refrigerated van truck

Quality 30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP wholesale

30 T Refrigerated Box Truck CNHTC Sinotruk HOWO 6x4 Heavy 336 HP Images
